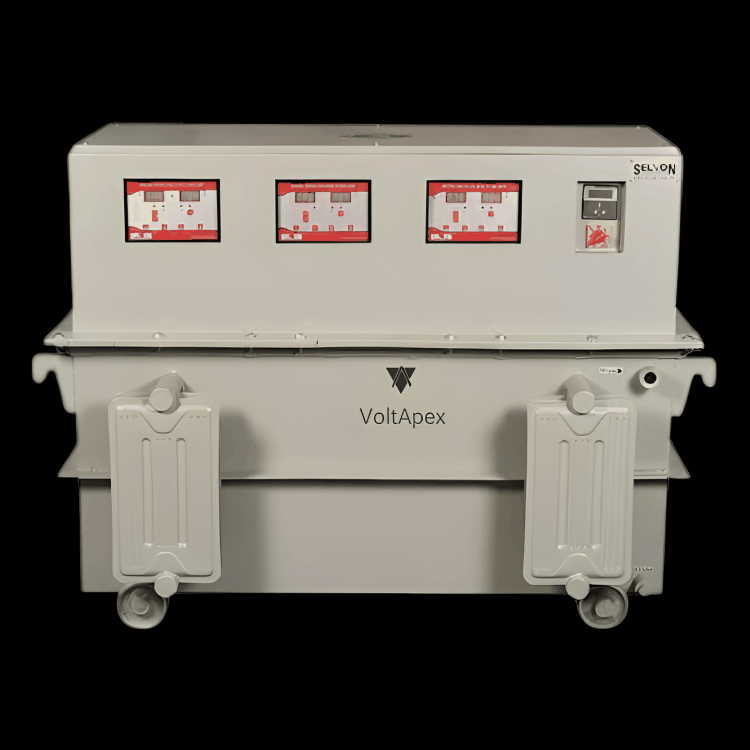

60 KVA Servo Voltage Stabilizer
Three‑Phase · ±1% Accuracy · 98.5% Efficiency
Voltapex delivers a durable 60 kva servo stabilizer engineered for medium‑scale production floors and commercial establishments. The oil‑immersed tank design maintains continuous performance in rigorous industrial conditions.
What the 60 KVA Rating Provides
This apparatus supplies unwavering three‑phase power for medium industrial applications.
The 60 KVA designation represents 60,000 Volt‑Amperes. At a standard power factor of 0.8, it accommodates roughly 48 kilowatts of connected machinery. The system absorbs motor inrush surges and grid variations seamlessly.
This kva stabilizer occupies the crucial middle ground between compact workshop devices and expansive central systems. It fits factories operating several production lines or commercial buildings with substantial electrical consumption. The industrial construction features a steel tank filled with insulating oil that draws heat away from windings and seals out airborne contaminants.
Prime Applications for a 60 KVA Stabilizer
- CNC Machine Groups: Feeds three to four mid‑size machining centers operating simultaneously.
- Injection Molding Operations: Keeps hydraulic pumps and heater bands steady for uniform part production.
- Commercial Pressrooms: Shields multicolor sheet‑fed and web offset printing presses from fluctuations.
- Medium Solar Arrays: Conditions output from 50‑60 kW grid‑tied inverter banks.
- Diagnostic Imaging Suites: Provides stable, clean energy to MRI chillers and CT systems.
- Cold Storage Warehouses: Guards large compressor motors from stalling and overheating.
For larger plant‑wide coverage, review our 100 KVA industrial stabilizer. For smaller workshops, examine the 50 KVA model.
Essential Characteristics of the 60 KVA Unit
- DSP‑Based Control: Swift digital processing governs motor position with high precision.
- High Inrush Tolerance: Motor starts produce no perceptible sag in output voltage.
- Oil‑Immersed Tank: Premium fluid cools windings and supplies dielectric isolation.
- Pure Sine Wave: Continuous analog correction preserves waveform integrity for electronics.
- Full Protection Array: Overload, short‑circuit, phase loss, and thermal safeguards.
- Broad Input Window: Operates from 300V to 480V; wider ranges available for severe sags.
- ±1% Output Accuracy: Holds 415V within tight limits across all three lines.
- Continuous Duty Rating: Built for 24/7 full‑load operation in ambient up to 45°C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 60 KVA (60,000 VA) |
| Active Load Capability | 48 KW (at 0.8 PF) |
| Phase Configuration | Three Phase, Four Wire |
| Cooling Method | Oil Cooled (ONAN) |
| Input Voltage Range | 300V – 480V (Standard) / 280V‑480V, 240V‑480V optional |
| Output Voltage | 415V AC ± 1% |
| Frequency | 50 Hz ± 5% |
| Efficiency | > 98.5% at Full Load |
| Correction Speed | 40 V per second |
| Response Time | 20‑30 milliseconds |
| Cooling Medium | Mineral Insulating Oil (IS 335) |
| Protection Class | IP54 (Dust and Water Resistant) |
| Ambient Temperature | -5°C to 45°C |
| Approx. Dimensions (WxDxH) | 800 x 650 x 1300 mm |
| Approx. Weight | ~420 kg |
How Precise Voltage Regulation Is Achieved
This three phase servo stabilizer employs a closed‑loop feedback mechanism. A sensing board constantly checks the incoming three - phase voltage.
Should the supply stray from the 415V target, the controller energizes a synchronous motor. A gear train links the motor to a carbon brush that glides along the winding of a variable autotransformer.
When input falls, the brush adds series voltage (boost). When input climbs, it subtracts voltage (buck). The adjusted voltage then excites the primary of a buck‑boost transformer, which yields the corrected 415V output.
Both transformers rest fully submerged in dielectric fluid. The oil wicks away heat and provides robust insulation. This permits the unit to manage high voltage swings and sustain long term performance. The precise voltage regulation delivers clean power essential for sensitive controls and drives.
What Distinguishes Voltapex Power
Integrated Manufacturing
We wind coils, stack cores, and weld tanks in‑house. This vertical control guarantees consistent quality and on‑schedule shipment.
Rigorous Factory Checks
Every unit passes full‑load heat runs and oil testing to confirm dielectric strength and breakdown voltage before dispatch.
Safe Delivery & Setup
We arrange specialized freight for oil‑filled equipment and provide engineers for on‑site commissioning.
Operational Benefits of a 60 KVA Stabilizer
Asset Protection
Prevents expensive breakdowns and downtime for CNC machines, molding presses, and process automation.
Energy Efficiency
Optimized voltage lowers motor copper and iron losses, often trimming electricity consumption by 3‑5%.
Uniform Production Output
Steady voltage maintains consistent motor speeds and heating, reducing scrap and rework.
Longer Motor Life
Eliminates insulation stress from chronic under‑voltage or over‑voltage conditions.
Ideal 60 KVA Solution for CNC and Factories
Manufacturing floors with several CNC machines encounter dynamic power demands. Spindle ramp‑up, tool swaps, and rapid axis moves can pull current spikes that sag the supply. The Voltapex 60 KVA servo stabilizer manages these loads with ample inrush capacity and oil‑cooled thermal endurance.
Unlike tap‑changing regulators that switch in steps, this servo design corrects voltage smoothly and continuously. There are no switching glitches to upset CNC servo drives or PLCs. The 60 KVA rating offers headroom for three to four production machines plus support equipment like coolant pumps and exhaust fans. For an industrial project expanding automation, this unit provides a solid foundation that can be paralleled later.
The system also serves power plants and industrial facilities where electrical power quality affects cost effectiveness. Its wide range input capability and energy efficiency make it a reliable power source for phase power conditioning. The design ensures safe and efficient operations even at high temperatures.
