What is an isolation transformer and how does it work?

An isolation transformer works on the principle of electromagnetic induction with a 1:1 turns ratio, providing complete galvanic isolation between primary and secondary windings. It blocks DC current, eliminates ground loops, attenuates common-mode noise by more than 100 dB, and protects sensitive equipment from electrical disturbances.

What is the purpose of an isolation transformer?

The primary purpose includes breaking ground loops, attenuating common-mode noise by more than 100 dB, protecting sensitive loads from surges and transients, enhancing operator safety, and providing voltage transformation while maintaining complete electrical isolation.

What standards do Voltapex isolation transformers comply with?

Voltapex isolation transformers are manufactured in compliance with IS 2026 (Part 1 to 4) and IEC 61558 standards. The manufacturing facility follows ISO 9001:2015 quality management systems, ensuring rigorous safety and performance requirements.

What capacities are available for isolation transformers?

Voltapex manufactures isolation transformers from 1 kVA to 500 kVA in both single phase and three phase configurations. Custom voltage ratings (110V, 230V, 415V, 480V) and frequency options (50 Hz and 60 Hz) are available on request.

What is the difference between an isolation transformer and a regular transformer?

The key difference is the electrostatic (Faraday) shield between primary and secondary windings in an isolation transformer, which provides enhanced noise rejection and safety isolation. Isolation transformers typically feature a 1:1 turns ratio so input voltage equals output voltage, whereas regular transformers are designed primarily for voltage step-up or step-down conversion.

IS 2026 + IEC 61558 | Made in India

Isolation Transformer Manufacturer – 1:1 Galvanic Isolation & Surge Protection

Q: Why use an isolation transformer in UPS systems?

Using an isolation transformer in UPS systems decouples the UPS output from input disturbances, eliminates common-mode noise, provides stable neutral-to-ground reference, reduces harmonics, and extends battery life. It is essential for data centers and critical facilities.

3 Phase & Single Phase | 1kVA to 500kVA | >100dB Noise Rejection | Optional Electrical Surge Protector

Trusted isolation transformer manufacturer for UPS, medical imaging, CNC machinery, and industrial panels. Voltapex three phase isolation transformers provide complete electrical separation, ground loop elimination, and built-in resilience against voltage transients.

Request a Quote – Custom kVA / Voltage

+91 8882730630

Custom engineered control transformer options, integrated electrical surge protector available.

Call Now WhatsApp

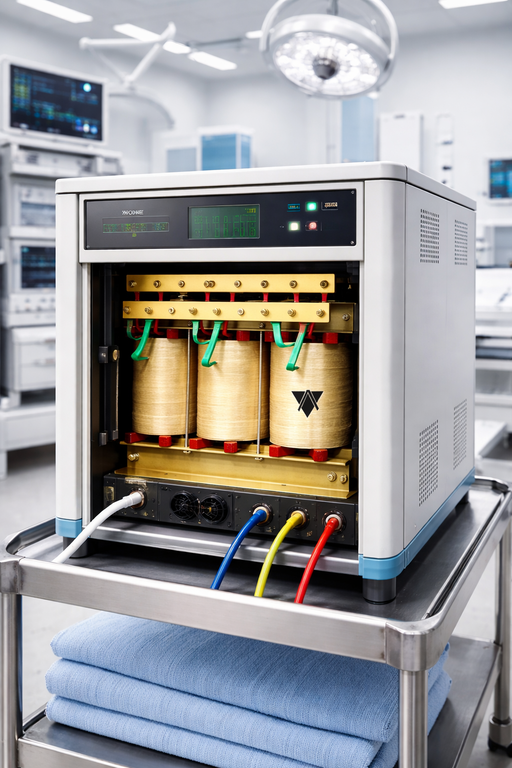

Isolation Transformer Manufacturer - Three Phase Isolation Transformer by Voltapex Power

4kV

Dielectric Isolation

>100dB

CMRR Noise Rejection

1:1

Turns Ratio

500kVA

Max Capacity

Isolation Transformer Working Principle & Diagram

An isolation transformer operates on electromagnetic induction with a precise 1:1 turns ratio, ensuring output voltage equals input while providing complete galvanic separation. The primary and secondary windings are electrically isolated, and an electrostatic Faraday shield blocks high-frequency noise. Understanding the isolation transformer working principle is key: it breaks ground loops, blocks DC, and attenuates common-mode noise by >100dB. For a clear isolation transformer diagram, visualize two separate copper windings on a laminated core with a grounded shield between them — no direct conductive path, only magnetic flux.

Primary purpose: Protect sensitive loads from electrical surges, harmonics, and provide safety isolation. Perfect for integration with electrical surge protector modules at input or output for enhanced transient immunity.

Simplified Isolation Transformer Diagram

Primary Winding → Electrostatic Shield → Secondary Winding (1:1 ratio)

✔ No electrical connection ✔ Magnetic coupling only

Three Phase Isolation Transformer & Single Phase Range

Power (kVA)	Phase Type	Isolation Voltage	Typical Isolation Transformer Application	Surge Protection Ready
1kVA – 5kVA	Single Phase	4kV	Medical devices, lab equipment, test benches	Optional
6kVA – 15kVA	Single / Three Phase	4kV	UPS systems, data centers, CNC controllers	Yes (integrated)
20kVA – 50kVA	Three Phase Isolation Transformer	4kV	Industrial UPS, pharma lines, MRI scanners	Standard
60kVA – 500kVA	Three Phase	4kV – 6kV	Critical facilities, broadcast, large manufacturing	High Energy Surge Protector

All units can be integrated with external control transformer circuitry or built-in electrical surge protector for enhanced power quality.

Isolation Transformer Applications – Industrial & Medical

Isolation Transformer in UPS

Eliminates common-mode noise, provides stable neutral reference, extends battery life. Critical for data centers and high-reliability power chains.

Medical Isolation Transformer

For MRI, CT scanners, surgical suites — leakage current <100µA, artifact-free imaging. Compliant with IEC 60601.

CNC & Industrial Automation

Protects sensitive PLCs, servo drives from VFD-induced noise and voltage spikes, reducing downtime.

Electrical Surge Protector Integration

Combine with surge protection modules to guard against lightning and switching transients – complete power security.

Audio & Broadcast

Ground loop elimination and hum rejection in recording studios, live sound, and video production.

Renewable Energy / Solar

Galvanic isolation for grid-tied inverters, preventing DC injection and meeting utility standards.

Why Voltapex? – Engineered for Reliability

4kV Dielectric + Faraday Shield

Superior common-mode noise rejection >100dB, blocks transients up to 10kV.

Three Phase Isolation Transformer

Balanced 3-phase output with neutral-ground bond elimination, ideal for industrial loads.

Integrated Electrical Surge Protector Ready

Optional MOV-based or hybrid surge protection modules on primary or secondary side.

Control Transformer Compatible

Can be designed as combination isolation + control transformer for panel builders.

IS 2026 & IEC 61558

Rigorous testing: impulse withstand, temperature rise, partial discharge.

98% Efficiency, 100% Copper

Class H insulation, vacuum impregnated windings for harsh conditions.

Frequently Asked Questions – Isolation Transformer

What is an isolation transformer and what is its purpose?

An isolation transformer provides electrical isolation between input and output with a 1:1 turns ratio. The primary purpose is to break ground loops, block DC, attenuate common-mode noise (>100dB), and protect sensitive equipment from surges and transients. It also enhances operator safety.

Why use an isolation transformer in UPS systems?

Using an isolation transformer in UPS systems decouples loads from input line disturbances, eliminates common-mode noise, provides a clean neutral-ground reference, reduces harmonics, and extends battery life. It is essential for data centers, medical facilities, and industrial UPS.

What is a three phase isolation transformer and where is it used?

A three phase isolation transformer is designed for industrial loads that require 3-phase power with complete galvanic separation. It is used in large CNC machines, industrial UPS, HVAC systems, medical imaging suites, and manufacturing plants to suppress noise and provide stable, isolated power.

Do you offer isolation transformers with integrated electrical surge protector?

Yes, Voltapex can integrate an electrical surge protector module (Type 1, Type 2) directly into the transformer enclosure or as a companion unit, providing coordinated surge suppression alongside galvanic isolation.

What’s the difference between an isolation transformer and a control transformer?

A control transformer is typically used to step down voltage for control circuits (e.g., 480V to 120V) and may not include an electrostatic shield. An isolation transformer usually has 1:1 ratio and a Faraday shield for maximum noise isolation and safety. However, we offer hybrid designs combining both functions.

Can you provide custom voltage and frequency (50/60Hz) isolation transformers?

Absolutely. Voltapex engineers custom single-phase and three-phase isolation transformers for any voltage (110V, 200V, 230V, 380V, 415V, 480V, 690V) and 50Hz/60Hz operation. OEM designs available with short lead times.

Secure Your Critical Equipment Today

Get a technical consultation for isolation transformer, three phase isolation transformer, or integrated surge protection.
