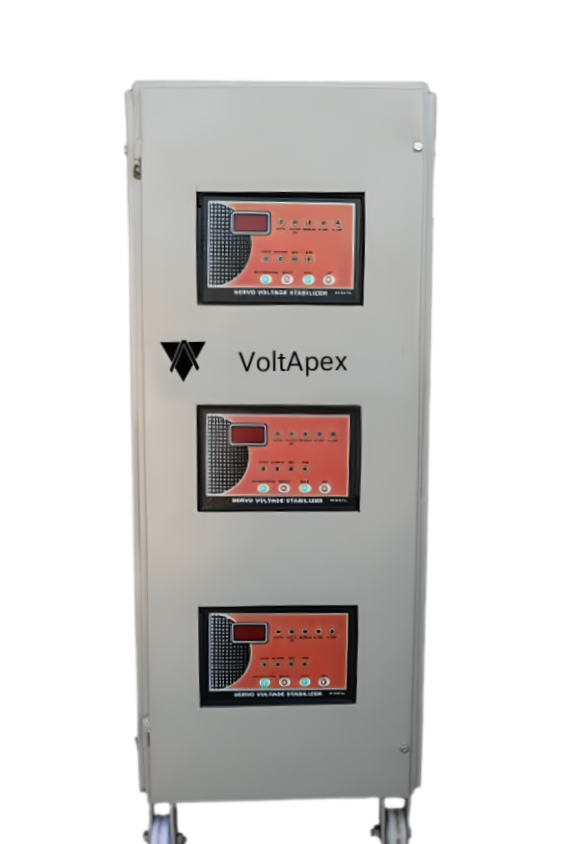

30 KVA Servo Voltage Stabilizer
Three Phase · ±1% Accuracy · 98% Efficiency
Compact yet powerful voltage regulation for small factories, commercial establishments, and individual production lines. Designed for reliable performance in environments with moderate voltage fluctuations.
What is a 30 KVA Servo Voltage Stabilizer?
A 30 KVA servo voltage stabilizer is an industrial power conditioning unit designed to maintain a consistent three-phase 415V output despite fluctuations in the incoming mains supply. The "30 KVA" designation indicates a capacity of 30,000 Volt-Amperes, which translates to approximately 24 KW of active equipment load (assuming a power factor of 0.8).
This capacity bridges the gap between smaller commercial units and heavy industrial equipment, making it the preferred choice for 30 KVA stabilizer manufacturer in India applications in workshops, small manufacturing units, and commercial buildings. The Voltapex 30 KVA model employs an air-cooled design with forced ventilation, making it compact and efficient for installation in clean indoor environments. The servo mechanism ensures seamless voltage correction without waveform distortion, protecting valuable equipment from damage caused by over-voltage, under-voltage, and power surges.
Applications of 30 KVA Stabilizer
- Small CNC Machines & VMCs: Ensures precise operation of entry-level and mid-range CNC equipment used in job shops.
- Commercial Printing Presses: Protects single-color and two-color offset printing machines from voltage-related speed variations.
- Diagnostic Centers & Clinics: Stable power for X-ray machines, ultrasound equipment, and laboratory analyzers.
- Small Solar Installations: Stabilizes output from rooftop solar inverters in commercial buildings.
- Workshops & Repair Units: Protects welding machines, compressors, and power tools from voltage fluctuations.
- Retail & Commercial Spaces: Maintains stable power for HVAC systems, elevators, and electronic point-of-sale equipment.
For larger industrial requirements, explore our 50 KVA servo voltage stabilizer range. For heavy plant-wide protection, view our 75 KVA industrial stabilizer.
Key Features of 30 KVA Servo Stabilizer
- Microcontroller-Based Control: Precision DSP control for accurate servo motor positioning and rapid voltage correction.
- Fast Correction Speed: Responds to voltage fluctuations within 20-30 milliseconds to maintain output stability.
- Forced Air Cooling: Efficient fan-based cooling system designed for continuous operation in clean environments.
- Zero Waveform Distortion: Pure analog correction maintains clean sine wave output for sensitive electronics.
- Comprehensive Protection: Built-in safeguards against over-voltage, under-voltage, overload, and short circuits.
- Wide Input Voltage Window: Operates reliably when grid voltage ranges from 340V to 470V.
- ±1% Output Accuracy: Maintains output at 415V ±1% regardless of load variation.
- Continuous Duty Rating: Engineered for continuous operation at 100% rated load.
- Digital Metering: Real-time monitoring of phase voltages, current, and operational status.
- Compact Footprint: Space-efficient design suitable for installations with limited floor space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 30 KVA (30,000 VA) |
| Active Load Capacity | 24 KW (at 0.8 Power Factor) |
| Phase Configuration | Three Phase, Four Wire |
| Cooling Type | Air Cooled (Forced Air) |
| Input Voltage Range | 340V - 470V (Standard) / Wider ranges available |
| Output Voltage | 415V AC ± 1% |
| Frequency | 50 Hz ± 5% |
| Efficiency | > 98% at Full Load |
| Correction Speed | 35 V per second |
| Response Time | 20-30 milliseconds |
| Protection Features | Overload, Short Circuit, Over/Under Voltage, Thermal |
| Ambient Temperature | -5°C to 45°C |
| Dimensions (W x D x H) | 700 x 550 x 850 mm (Approx) |
| Weight | ~180 kg |
Working Principle of Servo Voltage Stabilizer
A servo voltage stabilizer operates on the principle of closed-loop feedback control with electromechanical correction. The input voltage is continuously sampled by a sensing circuit that feeds data to a microcontroller. When the voltage deviates from the reference set point (415V), the controller activates a synchronous servo motor connected to the arm of a variable transformer (dimmer).
The servo motor rotates to adjust the carbon brush position along the variable transformer winding. This action adds voltage in series (boosting) during low voltage conditions or subtracts voltage (bucking) during high voltage conditions from the primary winding of the main buck-boost transformer. The air-cooled design in the 30 KVA model uses forced air circulation to maintain optimal operating temperature, with thermal sensors providing additional protection against overheating during extended operation at full load.
Why Choose Voltapex Power
In-House Manufacturing
Voltapex controls the entire production process—from copper winding to final assembly—ensuring consistent quality and reliable supply across India.
Full Load Testing
Every 30 KVA stabilizer undergoes rigorous full load testing, insulation resistance checks, and performance validation before dispatch.
Nationwide Support
We provide comprehensive after-sales service with a network of trained engineers ready to assist with commissioning and maintenance.
Benefits of Using a 30 KVA Stabilizer
Reduced Equipment Failure
Eliminates damage to sensitive electronics and motors caused by voltage spikes, sags, and prolonged over-voltage conditions.
Lower Energy Consumption
Optimized voltage reduces iron losses in motors and transformers, resulting in measurable kWh savings over time.
Improved Production Consistency
Stable voltage ensures consistent motor speeds and equipment performance, reducing rejected work and material waste.
Extended Equipment Lifespan
Prevents insulation degradation and overheating in motors, extending the operational life of capital equipment.
Best 30 KVA Stabilizer for CNC Machines and Workshop Equipment
The 30 KVA capacity represents an ideal balance between performance and footprint for small to medium workshops adopting automation. As Indian manufacturing shifts toward CNC-based production, even job shops and tier-2 suppliers require stable power for consistent quality. The Voltapex 30 KVA stabilizer addresses the specific needs of entry-level and mid-range CNC machines, including training center equipment and single-shift production units.
The air-cooled design offers distinct advantages in this segment: lower initial investment, easier installation in existing electrical rooms, and simplified maintenance. The fast correction speed ensures that CNC controllers do not register voltage-related alarms during tool changes or spindle acceleration. For workshops running multiple small machines—such as a CNC lathe, a manual milling machine, and shop lighting—the 30 KVA rating provides adequate headroom while maintaining precise voltage regulation. This unit serves as the foundation for reliable industrial servo stabilizer protection in growing manufacturing enterprises.
