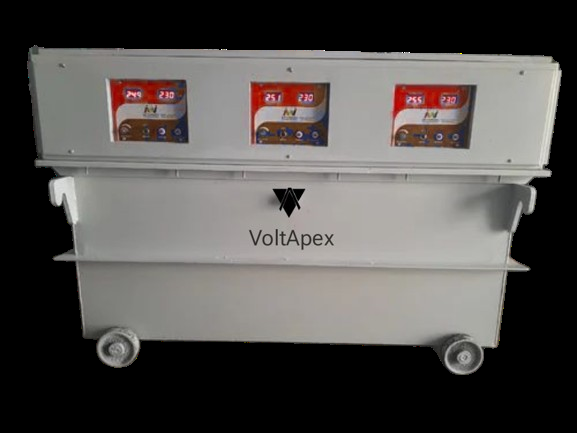

25 KVA Servo Voltage Stabilizer
Three Phase · ±1% Accuracy · 98% Efficiency
Voltapex supplies a reliable 25 kva stabilizer for small to medium industrial setups. The air‑cooled design delivers consistent performance for CNC machines, workshops, and commercial applications.
25 KVA Stabilizer – Understanding the Rating
A 25 kva stabilizer delivers stable three‑phase output regardless of incoming voltage swings.
The rating denotes 25,000 Volt‑Amperes. With a typical power factor of 0.8, it supports roughly 20 kilowatts of active equipment. The design easily absorbs starting surges from motors and compressors.
Unlike static relay‑based devices, this kva unit uses a motor‑driven variable transformer. This approach provides smooth voltage correction without introducing waveform distortion or switching spikes.
Our air‑cooled construction uses thermally controlled fans for efficient heat dissipation. The unit is engineered for indoor installation in workshops and factories, requiring only periodic brush inspection for years of dependable service.
Where a 25 KVA Stabilizer Fits Best
- CNC Routers & Small VMCs: Steady voltage for servo drives and control panels, preventing positioning errors.
- Printing Presses: Guards single‑colour and multi‑colour presses where speed changes ruin print quality.
- Small Injection Molding: Clean power for barrel heaters, hydraulic pumps, and automation.
- Packaging Lines: Protects sealing machines, conveyors, and labelling systems.
- Workshop Power: Manages power for lathes, drills, welding machines, and compressor loads.
- Commercial HVAC: Prevents compressor stalling and motor overheating during brownouts.
For smaller setups, see our 15 KVA servo stabilizer. For larger plant‑wide coverage, explore the 50 KVA industrial model.
Notable Features of the 25 KVA Unit
- Microprocessor Control: Fast digital processing ensures precise servo motor positioning and quick response.
- Inrush Current Handling: Motor start‑ups cause no perceptible voltage drop.
- Forced Air Cooling: Thermally controlled fans maintain optimal temperature for continuous duty.
- Pure Sine Wave Output: Continuous analog correction keeps waveform clean for sensitive electronics.
- Multi‑Tier Protection: Safeguards against over‑voltage, under‑voltage, phase loss, and short circuits.
- Broad Input Window: Operates reliably from 340V to 480V; custom ranges available for deeper sags.
- ±1% Output Precision: Maintains 415V within tight limits on all three phases.
- Continuous Duty Rated: Built for non‑stop operation at full load in ambient up to 45°C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 25 KVA (25,000 VA) |
| Active Load Capability | 20 KW (at 0.8 PF) |
| Phase Configuration | Three Phase, Four Wire |
| Cooling Methodology | Air Cooled (Forced Air) |
| Input Voltage Range | 340V – 480V (Standard) / Wider ranges optional |
| Output Voltage | 415V AC ± 1% |
| Frequency | 50 Hz ± 3% |
| Efficiency | > 98% at Full Load |
| Correction Speed | 35 V per second |
| Protection Class | IP21 (Indoor) / IP54 (Optional) |
| Ambient Temperature | -5°C to 45°C |
| Approx. Dimensions (WxDxH) | 550 x 650 x 800 mm |
| Approx. Weight | ~200 kg |
How the Servo Stabilizer Maintains Constant Voltage
This equipment relies on a closed‑loop feedback system. A sensing circuit continuously samples the incoming three‑phase supply.
If the voltage strays from the 415V reference, the controller activates a synchronous motor. Through a gear assembly, the motor shifts the carbon brush along the winding of a variable transformer (variac).
Depending on the input condition, the brush movement either adds voltage (boost) during low input or subtracts voltage (buck) during high input. The adjusted voltage feeds the primary of the main buck‑boost transformer, which delivers the corrected 415V to the load.
Both the variac and the main transformer are housed in a powder‑coated CRCA enclosure. Thermally controlled fans draw air across the components to maintain safe operating temperatures. This allows the 25 kva stabilizer to manage industrial loads continuously without thermal issues.
Why Customers Choose Voltapex Power
In‑House Production
We manufacture transformer cores, windings, and panels under one roof. This vertical control ensures consistent quality and timely deliveries across India.
Stringent Factory Trials
Each unit undergoes full‑load heat runs and insulation resistance testing to confirm electrical integrity before dispatch.
Lifetime Service Support
We provide comprehensive after‑sales assistance with a network of engineers ready for commissioning and maintenance.
Operational Advantages of a 25 KVA Stabilizer
Less Production Stoppage
Eliminates nuisance tripping of VFDs and PLCs caused by erratic voltage. Your lines keep moving.
Longer Machinery Life
Prevents overheating and insulation wear in motors—the primary cause of industrial motor failures.
Lower Energy Bills
Optimized voltage reduces iron losses in motors and transformers, trimming overall power consumption.
Better Product Quality
Steady spindle speeds and uniform heating yield consistent output with less material waste.
Ideal 25 KVA Stabilizer for CNC and Workshop Loads
Small to medium CNC workshops across India demand reliable power. Our 25 kva stabilizer is tuned for the dynamic load profile of CNC routers and small machining centres. When a spindle ramps up or a tool change occurs, current draw spikes sharply. Relay‑based stabilizers often cannot correct fast enough, leading to alarms or servo drive errors.
The Voltapex servo mechanism provides high inrush capacity and smooth correction without sine wave distortion. This is vital for the switch‑mode power supplies inside CNC controllers. Moreover, the air‑cooled design keeps the unit at full capacity with minimal maintenance, without the need for oil changes or leak checks. For workshops upgrading to CNC automation, this unit provides essential protection at an accessible 25 kva servo stabilizer price.
25 KVA Servo Stabilizer Price
Voltapex Power offers the 25 kva stabilizer price range from ₹38,000 to ₹58,000. The exact 25 kva servo stabilizer price depends on input voltage range customization, protection features, and accessories. For a precise quote, call us or send a WhatsApp message.
We provide high-quality air‑cooled servo stabilizers that deliver reliable voltage regulation for critical loads. Our pricing is competitive without compromising on components or testing standards.
Common Questions Answered
Secure Your Workshop with Stable Voltage
Contact Voltapex Power for a technical consultation and customized quote for the 25 KVA Air Cooled Stabilizer.
